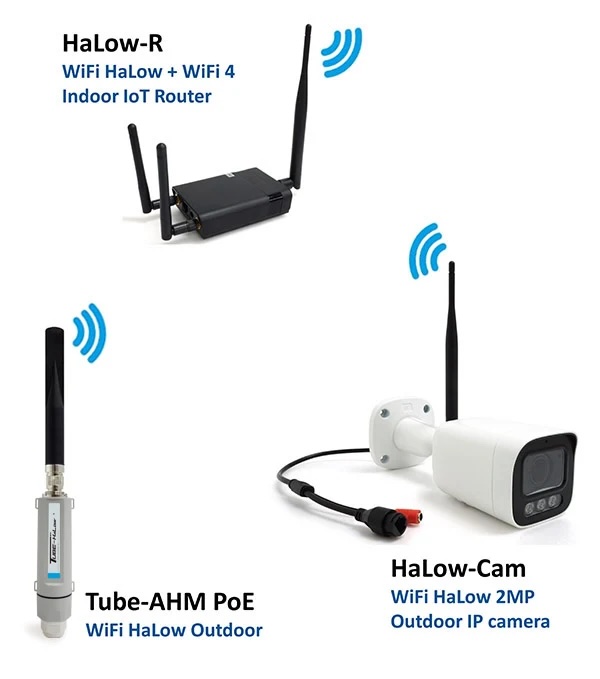

Tube AHM PoE
€149.95
The ALFA Network Tube-AHM PoE is an outdoor Wi-Fi HaLow device designed for long-range connectivity in sub-1 GHz networks. Using IEEE 802.11ah technology, it is intended for applications where conventional 2.4 GHz or 5 GHz Wi-Fi may be less suitable because of distance, obstacles, or power requirements.
- Smart Agriculture
- Remote IP Camera
- Long-Range Sensor Gateway
- Industrial IoT Monitoring
- Smart Cities
- Forest environment monitoring
- Coastline environment monitoring
- Mining monitoring
Availability:
In stock
SKU
Tube-AHM-PoE
Tube-AHM PoE – Long-Range Outdoor Connectivity with Wi-Fi HaLow
Tube-AHM PoE using 802.11ah Wi-Fi HaLow technology in the sub-1 GHz band. Compared to traditional 2.4GHz and 5GHz Wi-Fi, HaLow offers superior range, lower power consumption, and better penetration through walls and obstacles, making it ideal for rural deployments, smart agriculture, factory monitoring, and IoT sensor networks.
Tube-AHM PoE supports Fast Ethernet with standard 802.3af/at PoE, allowing both power and data to be delivered through a single cable for simplified installation. Its N-female antenna connector offers flexible external antenna options to optimize range and signal direction.
Tube-AHM PoE is built to withstand harsh weather conditions, dust, and moisture—perfect for demanding outdoor environments.
|
General Specifications |
|
|
CPU |
MT7628 |
|
HaLow Chipset |
Morse Micro MM6108 |
|
RAM |
128 MB |
|
Flash |
16 MB |
|
Frequency
|
915 MHz (US) 866 MHz (EU) 924 MHz (JP) 922 MHz (KR) 920 MHz (TW) |
|
Data Rate |
15 Mbps (Peak data rate) |
|
Channel Bandwidth |
1/2/4/8 MHz |
|
Antenna Connector |
N female |
|
Ethernet |
Fast Ethernet with ESD protection |
|
Button |
Reset button |
|
Power Supply |
802.3at/af PoE |
|
Operating Temperature |
-20° C - 60° C |
|
Dimensions |
176 x 38 mm |
|
Weight |
125 g |
|
Order Information |
||
|
Tube-AHM PoE-US |
902 MHz – 928 MHz |
26 MHz |
|
Tube-AHM PoE-EU |
863 MHz – 868 MHz |
5 MHz |
|
Tube-AHM PoE-JP |
916.5 MHz – 927.5 MHz |
11 MHz |
| Manufacturer | Alfa Network |
|---|---|
| SKU | Tube-AHM-PoE |
| EAN | 4711676410098 |
| Processor | Morse Micro MM6108 |
| System Memory | 128 Mb |
| Flash Memory | 16 Mb |
| Antenna Connector | N-Female |
| Environment | Outdoor |
| Dimensions | ⵁ46x165 mm |
